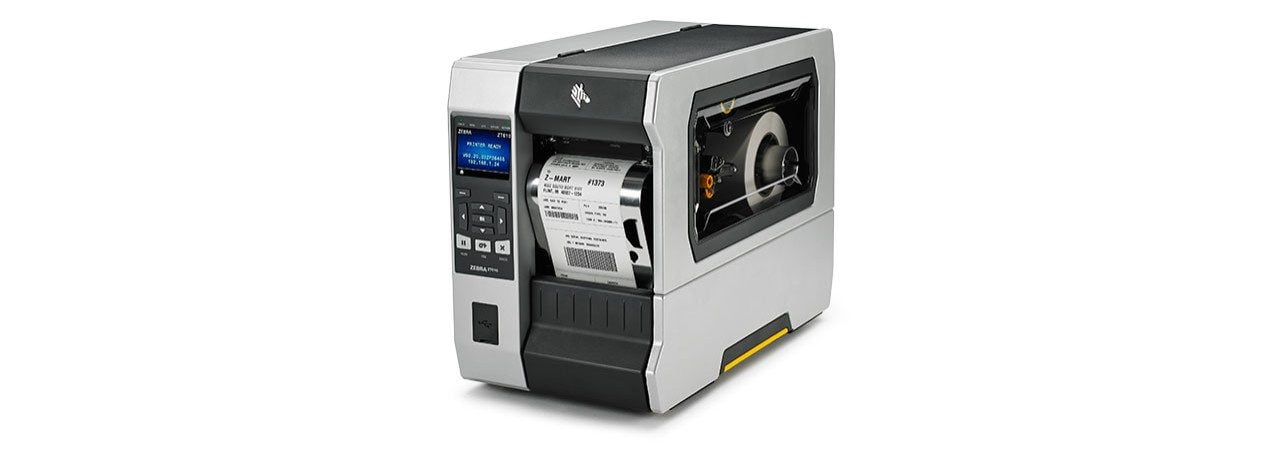

Zebra ZT620

The larger sister of the ZT610 allows for printing widths up to 6inches wide at a comparable speed. Ideal for large volume end label printing in a busy printroom.

Category:

Description

Advancing the legacy of the industry-leading Xi Series, the ZT600 Series industrial printers combine rugged durability and exceptional performance on a user-friendly, future-ready platform.

Whether you’re trying to keep up with high-volume demands or looking for ways to advance your business technology portfolio, the ZT620 prints 6-inches wide (168 mm) and 12 inches (305 mm) per second – to have you covered.

Industries

  •  Manufacturing
  •  Transportation
  •  Retail

Used For

  • Work-in-Process Tracking
  • Product ID/Serial Numbers
  • Receiving/Put-Away Labelling
  • Order Picking/Packing
  • Cross Docking
  • Compliance Labelling
  • Back-of-Store Operations

              Additional information

              Device Features

              LAN, NFC, RFID, Ribbon Save, USB

              Device Type

              Industrial

              Head Technology

              Thermal Direct, Thermal Transfer

              Specifications

              ZT620 Series

              Size and Weight

              • Height: 15.58″/395.68 mm
              • Width: 13.44″/341.45 mm
              • Depth: 19.88″/505 mm
              • Weight: 26 kg (57 pounds)

              Connections and Expansions

              • Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface.
              • IPv6 option is available as an external dongle attached to a parallel port

              Operation Panel

              Display
              Brightly lit, 4.3-inch full-colour touch display with clear navigation and immediate status visibility and support
              External Buttons
              Feed key, Restart key and Pause key
              Simplified touch-display icon menu navigation system categorizes settings into logical groups of functions
              Indicator
              Online LED, Error LED

              Memory

              • 1 GB RAM memory
                2 GB  on-board linear Flash memory

              Print Performance

              • Printhead: Near-edge
              • Print type: Thermal Transfer or Direct Thermal
              • Print width: up to 168 mm (6.6 inches)
              • Print length: up to 2,540 mm (100 inches)
              ZT620 200dpiZT620 300dpi
              Print Resolution
              200 DPI (8 dots per mm)
              Print Speed
              Up to 305 mm/s
              (12-inches per second)
              Print Resolution
              300 DPI (12 dots per mm)
              Print Speed
              Up to 305 mm/s
              (12-inches per second)

              Thermal Transfer Ribbon

              • Ribbon width 51 to 170mm (2.0 to 6.7 inches)
              • Ribbon length up to 450m
              • Inner diameter 25.4 mm (1 inch)

              Labels and Media

              • Media width 51 to 180mm (2 to 7.1 inches)
              • Media length: 8 to 2540 mm
              • Gap length: 2 to 20 mm
              • Thickness 0.013 to 0.25mm
              • Outer roll diameter up to 200 mm (8 inches)
              • Core size diameter 76.2 mm (3 inches)

              Barcodes

              1D Barcodes (Linear Symbologies) Supported

              Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code

              2D Barcodes (Matrix Symbologies) Supported

              Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec

              UHF Tags Supported

              Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols

              Electrical and Operating Requirements

              Operating Temperature:

              • Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC
              • Direct thermal = 32ºF to 104ºF/0ºC to 40ºC

              Operating Humidity: 20% to 85% non-condensing

              Storage/Transportation Temperature: -22F to 140F/
              -30C to 60C

              Storage Humidity: 20% to 85% non-condensing

              Safety and Environment

              • ENERGY STAR certified
              • RoHS compliant

              Limited Warranty and Service

              To enable predictable performance and improved business outcomes while eliminating unbudgeted repair costs, Zebra OneCare delivers expert technical assistance, repair services and software support for your ZT600 Series printer. Choose from a variety of plans to fit your specific operational needs—both today and as your operations evolve.

              In the Box

              • Zebra ZT600 Series
              • Power lead
              • Documentation
              • CD-ROM containing drivers, manual

              Configurable Options

              (Sold separately)
              Connectivity

              • Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port

              Media Handling

              • Rewind: Internally rewinds a full roll of printed labels on 3″ core, or peels and rewinds liner
              • Cutter: Front-mount guillotine cutter and catch tray
              • Ink-side in ribbon supply spindle

              RFID

              • Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
              • Integrated RFID system is user-upgradable in the field and available on both 4″ and 6″ models
              • Adaptive Encoding Technology automatically selects optimum encode settings

              Keyboard Display Unit

              • ZKDU™ keyboard display units for stand-alone printing applications
