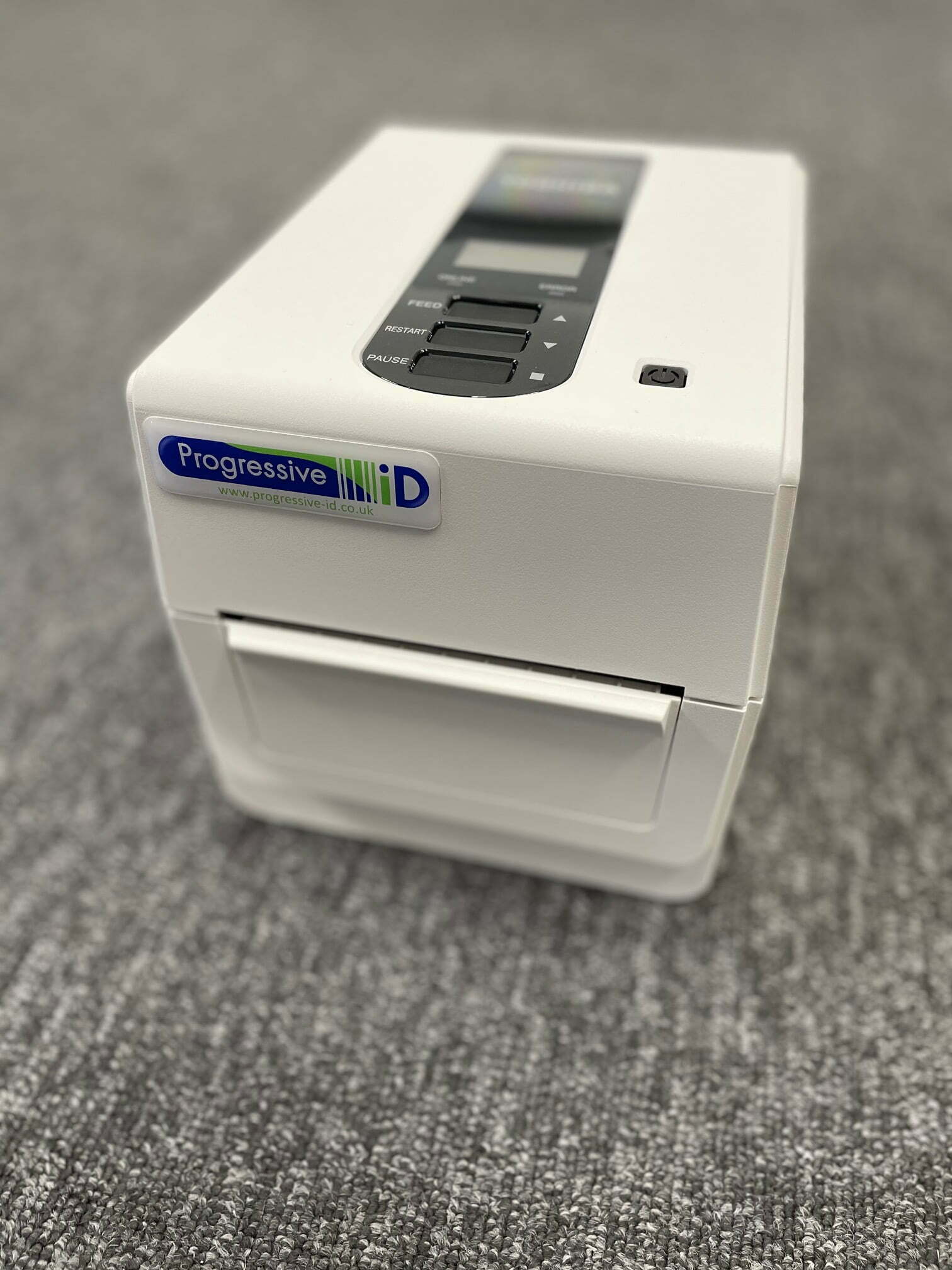

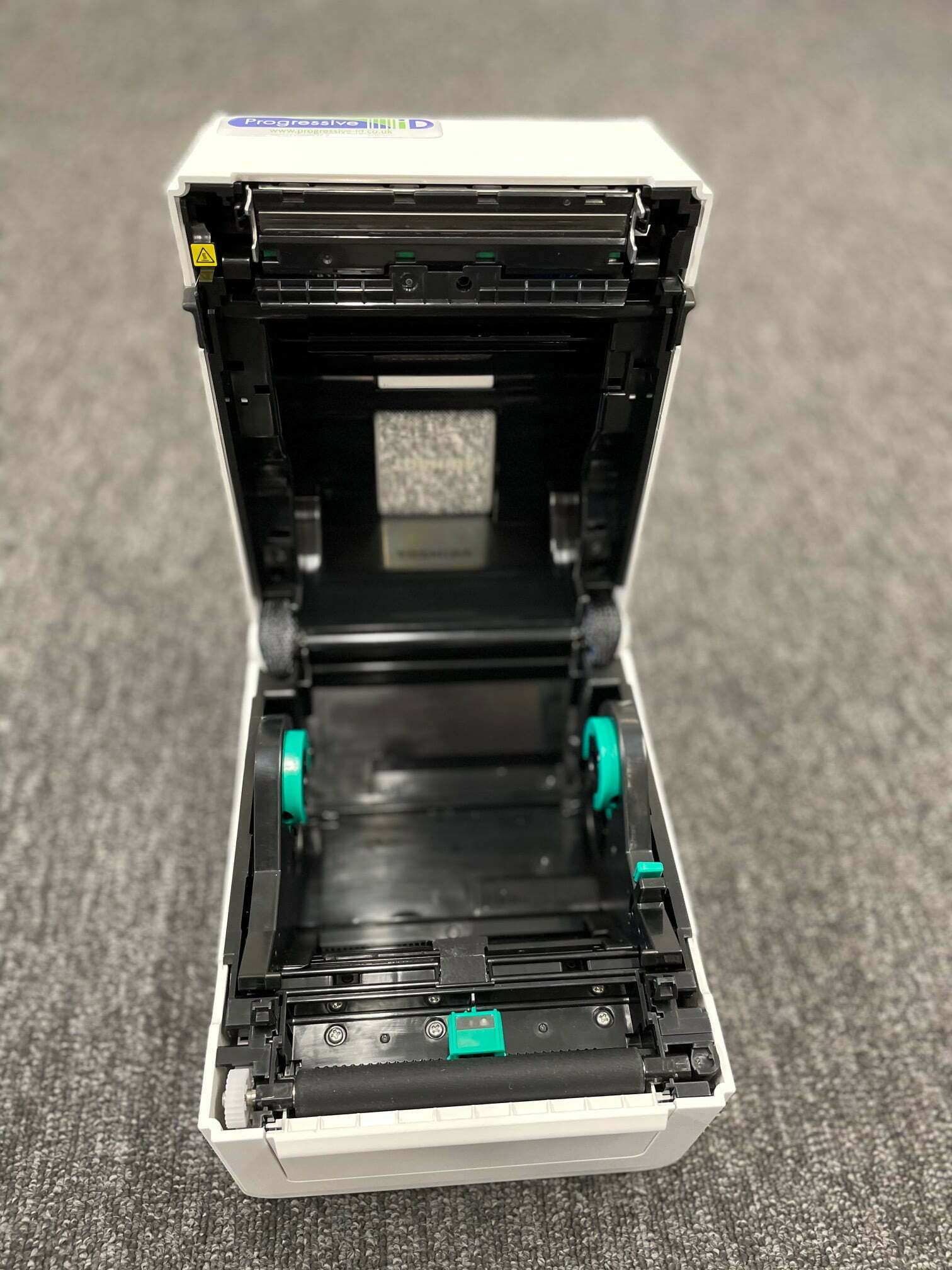

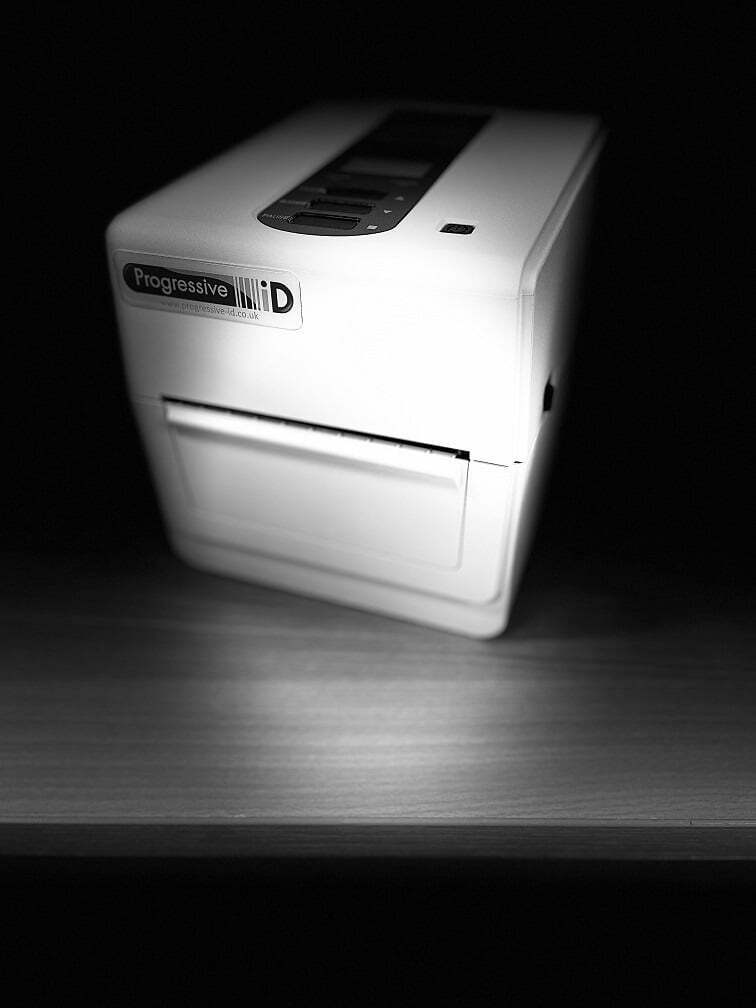

Toshiba BV410/420

Toshibas new ultra-small footprint printer series is designed to deliver industrial printer quality with outstanding flexibility. With its new linerless edition you can reduce costs and carbon footprint of your printing even further.

Category:

Description

Toshibas new ultra-small footprint printer series is designed to deliver industrial printer quality, with outstanding flexibility. Ultimate compactness was a core design criteria that led to the
creation of the B400D desktop printer range, suitable for versatile applications.
With its small footprint and clean case these printers suit retail shops, offices or any workplaces where space is a premium.

Available with (410) or without (420) a LCD for ease of monitoring, either a 203 or 200dpi head and with a range of optional accessories such as a full cutter unit, it therefore un-surprising what roles this printer can be applied to. There is even a liner-less cutter edition that allows use of non-backed labels for reduction in your waste and co2 footprint.
With the Industrial-designed high-end EX-Series next gen CPU, OS and connectivity within, Toshiba have given this compact series performance and future proofing.

Ease of Use

The sleek design of the BV400D series eliminates all redundant fussiness and concentrates on delivering clarity of operation to the user.
The integrated LCD screen of the BV410D provides clear information and notifications that are emphasised by the colour change of the status LEDs. The user can change main settings
directly on the printer whereas the built-in web page and iOS / Android app allows the full printer monitoring and maintenance remotely.

Speed and Connectivity

A series of features makes sure your desktop printer is ready to print labels and receipts quickly and efficiently at the touch of a button. The BV400D’s productivity is maximised by market leading print speeds of up to 7 inches per second and an advanced CPU which processes your data even quicker.
Thanks to the rapid boot-time the printer is ready almost instantly at power on.
Connectivity as standard includes USB2.0 and LAN and can be easily upgraded to include wireless LAN, Bluetooth and serial connections.

Additional information

Device Features

Bluetooth, Linerless, WIFI

Device Type

Desktop

Head Technology

Thermal Direct

Specifications

BV410/420

Size and Weight

BV400Series-TS02 (300dpi)

        BV400Series-GS02 (203dpi)
  • Height: 174 mm (6.85 inches)
  • Width: 173 mm (6.8 inches)
  • Depth: 218 mm (8.5 inches)
  • Weight: 2 kg (4.4 pounds)
  • Height: 174 mm (6.85 inches)
  • Width: 173 mm (6.8 inches)
  • Depth: 218 mm (8.5 inches)
  • Weight: 2 kg (4.4 pounds)

Connections and Expansions

Built-in:

  • Single USB 2.0 port.
  • Single Ethernet 10/100BASE port.

Optional:

  • Single Serial (RS-232C) port.
  • Single Wireless LAN module.
  • Bluetooth 2.1 Module

Operation Panel

Display
LCD backlit display
128 × 64 pixels
External Buttons
Feed key, Restart key and Pause key
Indicator
Colour status Online LED, Error LED, Status LED

Print Performance

  • Print method: Direct Thermal
  • Resolution:
    • 203 dpi (8 dots per mm)
    • 300 dpi (11.8 dots per mm)
  • Length: 997 mm max
  • Print speeds:
    • Up to 7-inches per second (177.8 mm/s)
  • Media width:
    • Direct Thermal: 25 to 118 mm (1 to 4.6 inches)
  • Outer core Diameter
    • Standard – Max. 127 mm
    • Optional – Max. 214 mm

Barcodes

1D Barcodes (Linear Symbologies) Supported

UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128,
NW7, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2
of 5, POSTNET, RM4SCC, KIX Code, Customer Barcode,
GS1 DataBar, USPS Intelligent Mail Barcode

2D Barcodes (Matrix Symbologies) Supported

Data Matrix, PDF 417, MaxiCode, QR Code,
Micro PDF 417, Micro QR, GS1 Data Matrix, Aztec Code

Electrical and Operating Requirements

  • Line voltage 100–240 V AC
  • Frequency 50–60 Hz
  • Power consumption:
    • Printing 116 W
    • Standby 15 W
  • Operating specs: 5°-40°C (41°-104°F) / 25-85% non-condensing relative humidity (RH)

Safety and Environment

  • ENERGY STAR certified
  • RoHS compliant

Limited Warranty and Service

The Toshiba BV410 and BV420 come with the standard Printer Warranty of 3 months on-site and 21 months Return to Base service and the Print Head Warranty of 6 months or 50 km, whichever is sooner.
This can be extended from 1 year up to a 5 year warranty. Other service provisions include
Contract Services and Ad-hoc Services.

In the Box

  • Toshiba BV410/420
  • Power lead
  • Documentation
  • CD-ROM containing Windows drivers, manual

Configurable Options

(Sold separately)
  • Full cutter module,
  • Partial cutter module,
  • Peel-off module,
  • Serial interface board,
  • Wireless LAN module,
  • Bluetooth module,
  • AC adapter cover,
  • External media stand
