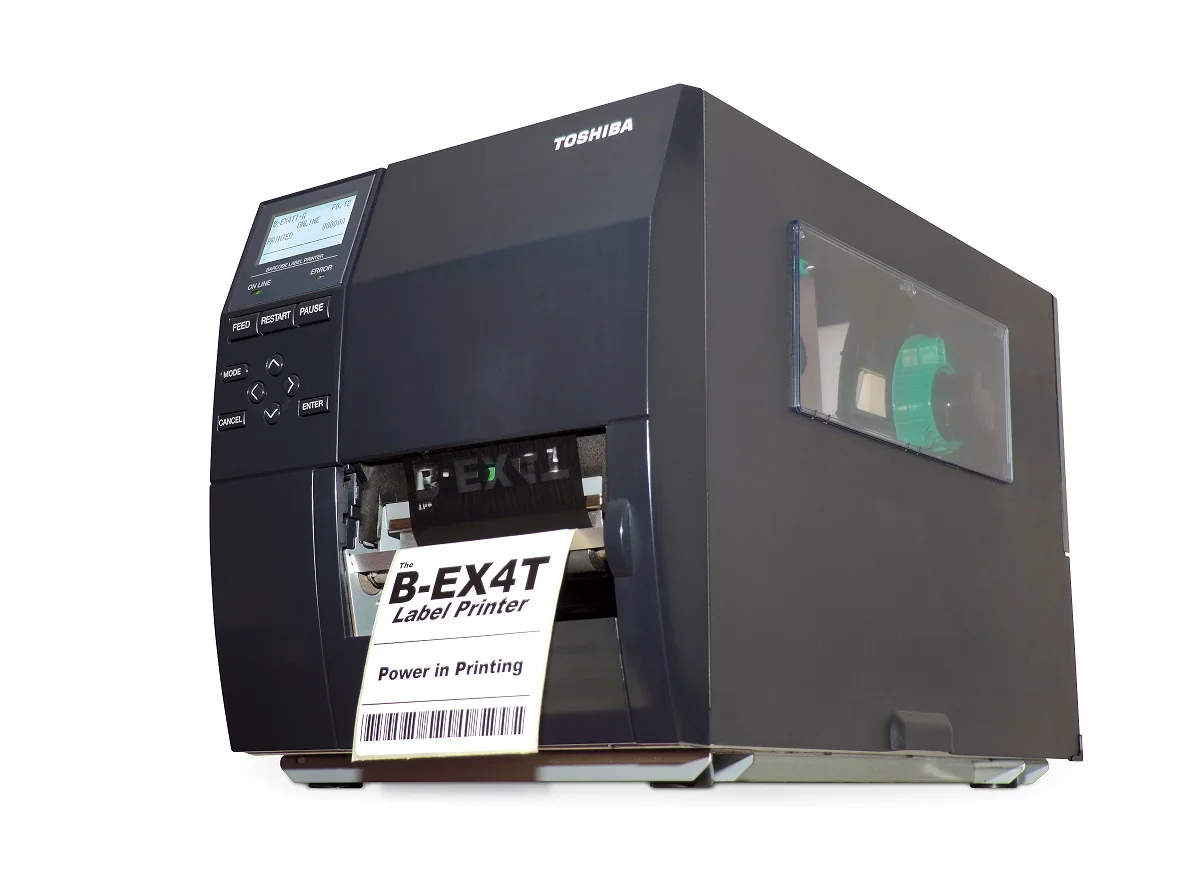

Toshiba B-EX4-T2



With a print speed of up to 12-inches per second the B-EX4 flat head is one the quickest flat head printers on the market. The 600 DPI model is no slouch either being able to print up to 6-inches per second.

Improved Design for Easier Maintenance

The B-EX4 improves upon the SX range by letting users ‘snap-in’ print head and platen rollers without the need for a service engineer. The hinged print head block provides easy access to the feed path for cleaning, maintenance or just to remove a jammed label. Automatic print head detection means the B-EX4 will always use the right settings for the print head installed without the need to re-configure. Print head resolutions available include 200, 300 and 600 DPI.

Use Z-mode to print Zebra data streams
Advanced emulation technology enables the B-EX4 printer to work with ZPL II ® data streams with no software changes required. Simply plug-in the B-EX4 and activate Z-mode and the printer will print your labels seamlessly.

Enhanced Connections
The B-EX4 is fitted with USB 2.0 and Ethernet LAN as standard to provide fast connections to your PC or network. Optional ports include Serial and Parallel and Wi-Fi for wireless connection to your network.

Improved Usability
The new menu and LCD display is bigger and brighter than previous generations of printer and greatly improves the ease at which users can operate the printer to adjust settings and troubleshoot common issues. New features include simple LAN set-up and IP address display and a new graphical sensor threshold setting for label sensors.


  • Thermal Transfer or Direct Thermal
  • 600, 300 or 200 dpi flat head print head
  • 12-inches per second max. print speed
  • USB 2.0
  • 10/100 BASE-T Ethernet

Additional information

Device Features


Device Type


Head Technology

Thermal Direct, Thermal Transfer



B-EX4T2 GS12, TS12 and HS12

Size and Weight

  • Height: 310 mm (12.1 inches)
  • Width: 278 mm (11.5 inches)
  • Depth: 460 mm (18.1 inches)
  • Weight: 17 kg (37.5 pounds)

Connections and Expansions

  • USB 2.0
  • 10/100 BASE-TX Ethernet (RJ-45 connector)

Operation Panel

LCD backlit display
128 × 64 pixels
External Buttons
Feed key, Restart key and Pause key
Four directional keys
Mode key, Enter key and Cancel key
Power LED, Online LED, Error LED


  • 32 MB SDRAM and 16 MB Flash ROM

Print Performance

  • Printhead: Flat-head, left aligned
  • Print type: Thermal Transfer or Direct Thermal
  • Print width: up to 104 mm (4-inches)
  • Print length: up to 1,498 mm (58 inches)
Print Resolution:
200 DPI (8 dots per mm)
Print Speed:
Up to 304 mm/s
(12-inches per second)
Print Resolution:
300 DPI (12 dots per mm)
Print Speed:
Up to 304 mm/s
(12-inches per second)
Print Resolution:
600 DPI (24 dots per mm)
Print Speed:
Up to 152 mm/s
(6-inches per second)

Thermal Transfer Ribbon

  • Ribbon width: 41 to 112 mm (1.6 to 4.4 inches)
  • Ribbon length: 450  or 600 m
  • Outer diameter: 90 mm (3.5 inches)

Labels and Media

  • Media width: 25 to 120 mm (1 to 4.7 inches)
  • Media length: 8 to 1,498 mm
  • Gap length: 2 to 20 mm
  • Thickness: 0.13 to 0.17 mm
  • Outer roll diameter: up to 200 mm (8 inches)
  • Core size (diameter): 76.2 mm (3 inches)


1D Barcodes (Linear Symbologies) Supported

UPC-A including 2- and 5-digit add-ons; UPC-E including 2- and 5-digit add-ons; EAN-13 including 2- and 5-digit add-ons; EAN-8 including 2- and 5-digit add-ons; Code 39; Codabar; Standard (Industrial) and Interleaved 2 of 5; MSI; EAN-128; JAN-13; RM4SCC; POSTNET; GS1 DataBar.

2D Barcodes (Matrix Symbologies) Supported

PDF417; Micro PDF417; QR code; Data Matrix; MaxiCode; CP Code.

Electrical and Operating Requirements

  • Line voltage: 100–240 V AC
  • Frequency: 50–60 Hz
  • Power consumption:
    • Printing 116 W
    • Standby 6 W
  • Operating temperature: 5 ℃ to 40 ℃ (40° to 104° F)
  • Relative humidity: 25% to 85% non-condensing

Safety and Environment

  • ENERGY STAR certified
  • RoHS compliant

Limited Warranty and Service

The Toshiba B-EX4T2 printer is warranted against defects in workmanship and materials for one year from date of shipment. The print head has a separate warranty of 100 km or 6 months, whichever is sooner.

Purchase a Service Contract to enhance the standard warranty up to five years for your B-EX4T2.

In the Box

  • Toshiba B-EX4T2
  • Power lead
  • Documentation
  • CD-ROM containing Windows drivers, manual
